Mini-Station Cloud Computing Terminal can work as a stand alone mini computer. You can surf internet, enjoy cloud computing, run simplify Office software and even download data to your USB flash memory or other moving HDD.
Particularly suitable user group
1. Window service industries: Banking, Taxation, Insurance, Securities, health, etc.
2. Education field: Network classrooms, Libraries, Student hostels, etc.
3. High security requirements agencies or departments: Design Institute, Government Departments and the company's R&D department, etc.
4. Public: Airports, Railway stations, Streets, Offices, etc.
5. Hotels: with Mini-Station Cloud Computing Terminal, you don't need to worry for customers' demolition and replacement of the HOST computers.
6. Customers who want a machine purely used for surfing.
7. Others, like real estate business, convention centers, exhibition halls, etc.
Datasheet

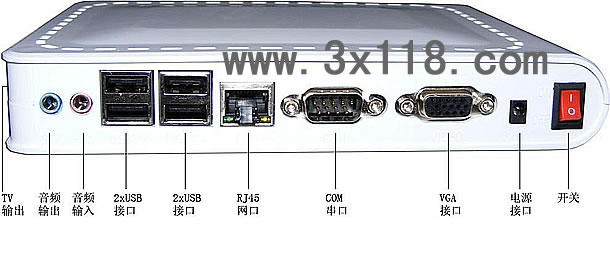

09 每TV ports
08 每COM ports
07 每4 USB ports
06 每Speaker out
05 每Microphone in
04 每VGA port
03 每Lan port
02 每Power jack
01 每Power switch
Mini-Station T580,Thin Client,desktop virtualization,Low cost computing,Thin Client,desktop virtualization T580
1. The specs are: Dimension 115mm*115mm*26mm.
2. Weight 0.5kg
3. Power Input: 100-240V, 50/60Hz; Output:5V/2A
4. Firmware feature Windows CE integrated RDP protocols
5. Onboard CPU ARM926EJ 533MHz
6. Memory Onboard 64MB RAM
7. Storage Onboard 64MB Flash
8. Display support Max 1280*1024, 16bit/64K colors; Widescreen 1440*900 support
9. Management Remote management, configuration;
10. Wake terminal remotely (Wake-on-Lan)
11. Onboard LAN 10/100 Mb/s
12. Operating range 3k meters
13. Ports: 1 RJ-45 LAN port; 3 USB 2.0 ports; 1 DC in port; 2 Audio jacks: speaker-out and
mic-in;
14.Supporting Wireless. Work via a USB-WIFI-Card.
15. Server OS support: Windows XP, Windows Server 2000/2003, Windows Vista, Windows 7, Windows Server2008,, Linux and all other OS which has terminal working permission.
|
|
Mini-Station-T580 Concept :
Mini-Station-T580 is a independent terminalㄛusers can surf the Internet﹜play gamesㄛ and can realize Internet application of ASP﹜instant Messenger﹜Private E-mail ㄛand office suites software﹜photo manager software﹜multimedia software and so on with no need to purchase standard host
Latest research and development birth to the Mini-Station-T580_PC-Station is currently on the market all the network the most powerful computers, compatibility, the best, is compatible with all WINDOWS platforms, including WINDOWS XP, WINDOWS 2000, WINDOWS VISTA, WINDOWS 2000 SERVER, WINDOWS 2003 SERVER, WINDOWS 7, WINDOWS 2008, support WINDOWS the system automatically update all the patches. This product is independent research and development, independent intellectual property rights, look refined to ensure a good thermal and anti-fire ability blessing. Super stability, 7X24-hour continuous running tests, on-line use of non-crash, not restart, not dropped.
Mini-Station-T580_PC-Station network computer, support Win2000/2003 Server System remote access and control, while supporting WinXP system, LAN access and control. A WinCE operating system with an independent 2G memory, may from time with the server and work independently. Because it is the application of VDP technology, so it can be accessible via the Internet at home or office host (Note: requires a certain bandwidth and the public network IP address); another host can browse and control workstations.
Mini-Station-T580_PC-Station can be used as a separate operation, for web browsing; they can share computing network, innovative cost advantage of the network to carry out business operations. Mini-Station-T580_PC-Station price equal to only 10% of the traditional personal -20% PC, and use of integrated software and hardware design, that is conducive to safeguarding and convenient management. Multi-User use of technology, and supporting software enables the host resource sharing, desktop terminal without Windows license can be directly connected: Windows 2000 / Windows XP / Windows 2003 / Windows 7 / Windows 2008 / Vista server, unified management of the entire system, upgrade maintenance work is carried out in the service side, truly terminal close to "zero" maintenance. Compact body without the need for cooling fans, no noise, low-E, green health environmental protection.
Key features & benefits
Enables sharing one host PC with up to 100 users*
Slash acquisition and support costs up to 80%
No need set up and No Need Maintenance, But it very secure
Compact, reliable, and energyeffi cient (no fans or disks, 5 watts per user)
Includes powerful absolute Windows CE system,It can absolute Working dispense with Host PC
Simultaneously Operating With Windows.
No need net license.
Can visiting the Host PC which in the globosity throught the Internet IP, user name and user password
Can simultaneously and independently operate the same programme
Mount to a monitor with included bracket
Connects to host PC via Ethernet over any distance
USB Port (connect USB Flash memory,USB camer and USB printer etc)
Includes terminal services software for Windows CE,Windows XP,Linux,Windows 2003 Server,Windows 7,Windows Server 2008,Vista,All OS
Extension protocol supports multi-media applications
Mount to a monitor with included bracket
All in a stylish new smaller chassis (just 1 inch tall and 4.5 inches square)
16-bit stereo input via Microphone port.
Resolutions up to 1440x900 for widescreen
With improved color depth 24-bit graphic support
Zero-footprint monitor mount |
Max # users |
Up to 100pcs |
Distance |
No distance restriction |
Whether to insert cards |
No need to insert cards |
Connection ways 1 |
Network wire connection ㄗThrough the Switch or Routerㄘ |
Connection ways 2 |
Wireless LAN |
Support system |
Windows CE,Windows XP,Linux,Windows 2003 Server,Windows 7,Windows Server 2008,Vista,All OS |
Support Film |
Local watch movies full-screen, networking small screen. |
Support for USB memory |
Support |
Support USB touch screen |
Perfect support a variety of types of touch-screen, including resistive, capacitive, infrared and other types of touch-screen |
Support USB port printers |
Support |
Support Camera |
Can not support |
Support Microphone |
The use of non-networked stand-alone support the MIC, after the network cann`t support |
Remote Desktop Connection |
Support |
Remote Desktop Connection Control |
Support |
Remote control (VNC management system) |
Support |
Color range |
16-bit or 24-bit |
Support resolution |
640*480,800*600,1024*768,1280*1024,1440*900,1280*800,1280*960 |
Power supply |
Input: 100-250 V AC, 50-60 Hz, Output: DC 5 V/2 A, Nominal consumption: 5 W |
LED indicator |
Power: connection to power supply, LAN: connection to network, Ready: connection to host PC |
Audio |
Stereo output via speaker port |
Dimension |
115mm*26mm*115mm ( L*H*W ) |
Certification |
CE,FCC,RoHS |
Hardware Performance |
533MHz frequency, 64M DDR, 64M ~ 8G NAND FLASH, 3D graphics accelerator card, power consumption: less than 5W, operating temperature: 0 ⊥ ~ 80 ⊥ |
Software Support |
Windows CE 5.0, TCPMP multimedia player, Word, Execl, PDF, etc. OFFICE office software, Remote Desktop, IE browser |
Product core advantage |
To avoid eliminating lots of outdated computersㄛand minimize overweighted maintenance. Save worryㄛsave money ! |
|
